ENERCALC For Revit

ENERCALC for Autodesk™ Revit™ simplifies structural design by bridging the gap between calculation and documentation. It allows engineers to access the familiar power of ENERCALC SEL as a seamless real-time extension of your Revit environment. ENERCALC's use of the Revit API results in fast-paced, intuitive design with no import/export process.

Here's a peek at a steel girder design being launched from Revit. Revit geometry data are used to instantaneously generate a complete Steel Beam calculation in ENERCALC SEL. Code-checks are reviewed in SEL and any design changes (i.e., section size, etc.) are automatically passed back to Revit when the calculation is saved. Color coded highlighting in Revit views provide easy review of completion status and code check pass/fail information passed from ENERCALC.



ENERCALC For Autodesk Revit® session at Autodesk University 2021

Structural engineers are quite familiar with the disconnect between design and documentation tools. Construction documents have our engineering analysis in their DNA. Despite this connection, we create these documents using tools that don't share information. The impact of this disconnect ranges from mild inconvenience to profit-crushing time sinks. What if our tools could "talk" to one another? Imagine structural modeling, interdisciplinary coordination, engineering analysis, design, and final documentation creation on a unified platform. Given today's powerful BIM (Building Information Modeling) environments, this workflow isn't a dream.

Check out our session from Autodesk University 2021, BIM-Driven Engineering, Structural Design Without Redundant Workload



ENERCALC For Revit - Step by Step

NavigationBuild calculationsReview & "What-If" in ENERCALCLoad linkingChange MonitoringColor-coded graphical cuesBulk recalculations

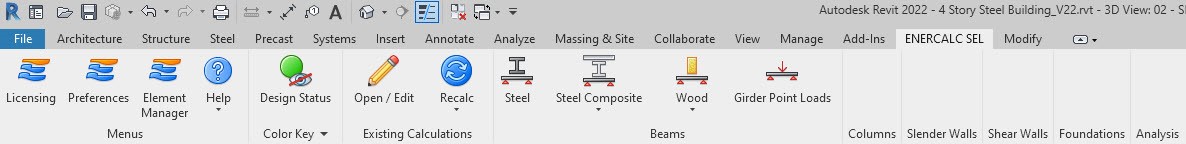

Create and manage ENERCALC calculations conveniently from the Revit ribbon bar

ENERCALC For Revit - Ribbon Bar
Back to step by step

Use Revit model geometry to build detailed structural calculations instantly.
>ENERCALC For Revit - Building calculations
Back to step by step

Review calculations and design structural components via the familiar ENERCALC Structural Engineering Library interface.
ENERCALC For Revit - Design In SEL
Back to step by step

Automatically apply reaction forces to related structural elements via Load-Linking

ENERCALC For Revit - Load linking
Back to step by step

Overview and visualize projects with the power of Revit's rich native graphic controls

ENERCALC For Revit - Change monitoring
Back to step by step

Manage the natural evolution of a project with real-time awareness of changes to the Revit model

ENERCALC For Revit - Rich graphics and color coded results
Back to step by step

Effortlessly update calculations on the fly to reflect Revit model changes using bulk recalculation tools

ENERCALC For Revit - Bulk recalculation
Back to step by step



Frequently asked questions

Answers to frequently asked ENERCALC For Revit™ questions are available in the ENERCALC For Revit section of the ENERCALC FAQ
